Brass vs Aluminum Landscape Lights

Which Material Is Right for Your Garden?

Walk through any upscale neighborhood after dark, and you'll notice something: the gardens that look truly finished — the ones that feel like they've always been there — use brass fixtures. Not because the owners spent more, but because brass has a quality that aluminum and plastic simply cannot replicate.

But that doesn't mean brass is right for every garden. Aluminum has legitimate advantages that make it the smarter choice in specific scenarios. And "cheaper" isn't one of them — at least, not in the way most people think.

This guide breaks down the real differences between brass and aluminum landscape lighting, when each material wins, and how to choose based on your actual garden — not your budget alone.

---

🔬 The Science: What Happens to Each Material Outdoors

🥇 Solid Brass: The Self-Healing Metal

Brass is an alloy of copper and zinc. When exposed to moisture and oxygen, it forms a patina — a thin, protective layer of oxidized copper that actually prevents further corrosion. This isn't rust. Rust (iron oxide) flakes off and exposes fresh metal to more corrosion. Patina bonds to the surface and shields what's underneath.

What This Means: A Gardencoin brass fixture left outdoors for 50 years will still be structurally sound. The surface changes color — from bright gold to warm brown to deep bronze-green — but the metal beneath is protected. This is why brass statues, ship fittings, and architectural elements last centuries.

Gardencoin Brass Specifics:

• ✅ Solid brass body (not die-cast or plated)

• ✅ Hand-applied antique finish accelerates initial patina

• ✅ Natural weathering continues for 10+ years before stabilizing

• ✅ Weight: 2-3× heavier than aluminum equivalents

---

🥈 Die-Cast Aluminum: The Coated Protector

Aluminum doesn't rust (it doesn't contain iron), but it does oxidize. Bare aluminum forms a white, powdery oxide layer that looks chalky and dull. To prevent this, Gardencoin aluminum fixtures use bronze powder coating — a baked-on polymer layer that seals the metal from moisture and oxygen.

What This Means: The aluminum itself is protected, but the coating is the weak point. Scratches, chips, or UV degradation expose bare metal, and oxidation begins at those points. In normal climates, this takes 10-15 years. In coastal or high-humidity areas, it can happen in 5-7 years.

Gardencoin Aluminum Specifics:

• ✅ Die-cast aluminum with bronze powder-coated finish

• ✅ UV-stable coating resists fading and chalking

• ✅ Lighter weight (easier installation, less ground pressure)

• ✅ Modern aesthetic — crisp lines, uniform color

---

📊 Head-to-Head: 10 Dimensions Compared

---

🎭 Real Garden Scenarios: Which Material Wins?

Scenario 1: 🏡 The Forever Home

"We built this house. We're not leaving. I want lighting that outlasts me."

Winner: 🥇 Brass

If you're in your permanent residence, brass is the only logical choice. The upfront cost difference ($30-50 per fixture) amortizes over decades into pennies per year. More importantly, you avoid the hassle of replacement — digging up wire, disconnecting gel-filled connectors, pulling old stakes, installing new fixtures — every 10-15 years.

💡 Gardencoin Recommendation: Solid brass path lights for the main walkway. Solid brass spotlights for trees and architecture. Use the Gardencoin 150W or 300W multi-tap transformer for expansion headroom. This is a "set it and forget it" system.

---

Scenario 2: 🏠 The 5-10 Year Plan

"We love this house, but we'll probably move in 7-8 years when the kids are in middle school."

Winner: 🥈 Aluminum (with brass accents)

Aluminum fixtures will last your entire ownership period with normal maintenance. The key is strategic placement: use brass for the high-visibility areas that buyers notice (main walkway, entrance, front facade) and aluminum for secondary paths and utility lighting.

💡 Gardencoin Recommendation: Gardencoin Brass Path Lights for the main approach (4-6 fixtures). Gardencoin Aluminum Path Lights for side paths and garden bed edges (2-4 fixtures). Gardencoin Brass Spotlights for the most impressive tree or architectural feature. This "brass where it matters" approach gives you 80% of the premium impression at 60% of the cost.

---

Scenario 3: 🌊 The Coastal Property

"We're 200 yards from the ocean. Everything rusts here."

Winner: 🥇 Brass (by a landslide)

Salt air is kryptonite to powder-coated aluminum. The salt particles embed in microscopic coating imperfections, then draw moisture through capillary action. Within 3-5 years, you'll see bubbling, flaking, and white oxidation spots. Brass, conversely, thrives in coastal humidity — the patina forms faster and more evenly, creating a protective barrier that salt cannot penetrate.

🚨 Warning: Bare aluminum (without powder coating) fails in coastal climates within 2-3 years. Even "marine grade" coatings struggle beyond 5-7 years in salt spray zones. Gardencoin brass is the only material we recommend within 5 miles of salt water.

💡 Gardencoin Recommendation: Full brass system — path lights, spotlights, well lights, and transformer enclosure. The Gardencoin 300W Smart Multi-Tap transformer has a weather-resistant housing, but consider mounting it in a sheltered location or adding a stainless steel shield in extreme exposure areas.

---

Scenario 4: 🏗️ The Modern Build

"Our house is all glass and concrete. I don't want anything that looks 'old.'"

Winner: 🥈 Aluminum

Modern architecture demands clean lines and uniform finishes. Brass patina — while beautiful — reads as traditional or transitional. The crisp, consistent bronze powder coat of Gardencoin aluminum fixtures complements contemporary materials without competing with them.

💡 Gardencoin Recommendation: Gardencoin Aluminum Path Lights with sharp geometric hoods. Gardencoin Compact Aluminum Spotlights with narrow 15° beams for precise architectural grazing. Keep the color temperature at 2700K (not cooler) — warm light softens hard modern surfaces.

---

Scenario 5: 🌲 The Mature Woodland Garden

"My garden is 30 years old. The trees are enormous. I need fixtures that feel like they belong."

Winner: 🥇 Brass

A mature garden has gravitas. Plastic or aluminum fixtures look like afterthoughts against 50-foot oaks and established stone walls. Brass, with its natural patina and substantial weight, feels like it was installed when the garden was planted. The visual harmony is immediate and lasting.

💡 Gardencoin Recommendation: Gardencoin Brass Path Lights along woodland paths. Gardencoin Classic Brass Spotlights for uplighting specimen trees. Gardencoin Brass Well Lights at the base of mature trunks (flush mount avoids interfering with root zones). The hand-applied antique finish means the fixtures look established from day one.

---

Scenario 6: 🏢 The Rental Property

"I need curb appeal that doesn't break the bank. If a tenant breaks it, I want affordable replacement."

Winner: 🥈 Aluminum

Rental properties prioritize function and replaceability over heirloom quality. Aluminum fixtures deliver professional appearance at replacement-friendly prices. If a lawn service damages a stake or a tenant backs over a path light, replacement is straightforward and economical.

💡 Gardencoin Recommendation: Gardencoin Aluminum Path Lights (6-8 fixtures) with the Gardencoin 45W Single-Tap Transformer. Use Gardencoin 14/2 wire for standard runs. Document the layout with photos for easy replacement. Consider mounting the transformer in a locked utility box if tenant access is a concern.

---

💰 The Real Cost Conversation (Beyond Sticker Price)

Most buyers compare brass and aluminum at the point of purchase. This is the wrong math.

The 15-Year View

🏆 The Paradox: Brass costs more today but costs less over time. Aluminum costs less today but requires replacement labor. Plastic costs least today but costs most over time. The "cheapest" option is rarely the cheapest.

Hidden Costs of Replacement

When aluminum fixtures reach end-of-life, you're not just buying new fixtures. You're also:

• ⏱️ Spending a weekend digging up old stakes and wire

• 🔌 Disconnecting and reconnecting 10-20 gel-filled connectors

• 🌱 Repairing sod or mulch disturbed during removal

• 📏 Potentially replacing wire damaged during extraction

• 🎯 Re-aiming spotlights because positions shifted

Brass avoids all of this. Install once. Maintain occasionally. Enjoy for decades.

---

🎨 The Aesthetic Evolution: What Your Fixtures Will Look Like

Gardencoin Brass: Year by Year

---

Gardencoin Aluminum: Year by Year

---

⚠️ 4 Critical Mistakes When Choosing Between Brass and Aluminum

---

🔧 Maintenance: What Each Material Actually Needs

Gardencoin Brass Maintenance

💡 The Patina Decision: Some homeowners love the evolving patina. Others prefer the original antique bronze brightness. If you're in the latter camp, a light polish with brass cleaner every 3-5 years restores the original tone. This is purely aesthetic — the patina is protective, not harmful.

---

Gardencoin Aluminum Maintenance

💡 Coating Care: Small scratches in the powder coat are repairable with automotive touch-up paint (match the bronze tone). This prevents oxidation from starting at the scratch point. Inspect after any lawn service visit — string trimmers are the #1 cause of coating damage.

---

❓ Material-Specific FAQ

Can I mix Gardencoin brass and aluminum fixtures in the same garden?

Yes, strategically. Use brass for high-visibility areas (main walkway, focal trees, entrance) and aluminum for secondary paths and utility lighting. This "brass where it matters" approach is popular among Gardencoin customers. Just don't connect brass and aluminum fixtures directly on the same wire without isolation — use separate runs or dielectric grease at junction points.

---

Does brass attract thieves? It's valuable metal, right?

Landscape lighting fixtures aren't attractive theft targets — they're anchored in the ground, connected to wire, and relatively low in scrap value compared to copper pipe or wire. Gardencoin brass fixtures are solid brass (not pure copper), which further reduces scrap appeal. In 15+ years of sales, theft has never been reported as an issue.

---

Will brass fixtures turn green like the Statue of Liberty?

Eventually, yes — but much slower and more controlled. The Statue of Liberty is pure copper (not brass) and exposed to salt spray 24/7. Gardencoin brass fixtures develop a warm brown patina first, then subtle green undertones after 10-15 years. Most homeowners find this evolution attractive. If you prefer to prevent it, an annual coat of clear lacquer stops the oxidation process.

---

Is aluminum really that much easier to install?

Yes — primarily because of weight. A Gardencoin aluminum path light weighs roughly 1/3 of its brass equivalent. In soft or rocky soil, this makes a meaningful difference. You can push aluminum stakes in by foot; brass usually requires a mallet or pre-soaking. For large DIY installations (15+ fixtures), the labor savings of aluminum are real.

---

What about copper fixtures? I see them mentioned sometimes.

Pure copper is beautiful but impractical for landscape lighting. It's softer than brass (bends and dents easily), more expensive, and the green patina develops faster and more aggressively. Brass (copper-zinc alloy) gives you 90% of copper's aesthetic with superior durability and lower cost. Gardencoin uses solid brass, not copper, for this reason.

---

I'm replacing an old system. Should I match the existing material?

Not necessarily. If your old system is aluminum and you're upgrading to brass, replace the wire connectors at every junction (use Gardencoin gel-filled connectors). The wire itself can stay if it's in good condition. If your old system is brass and you're adding aluminum fixtures, run a separate wire line for the aluminum section to avoid galvanic issues.

---

🛒 The Bottom Line: Choose by Scene, Not by Budget

💡 Final Thought: The material you choose sends a signal about your garden. Brass says "this was planned to last." Aluminum says "this is practical and modern." Both are valid. The wrong choice isn't about money — it's about mismatching material to intention.

---

Explore Gardencoin by Material

• 🥇 Gardencoin Brass Collection → /collections/brass-landscape-lighting

• 🥈 Gardencoin Aluminum Collection → /collections/aluminum-landscape-lighting

• ⚡ Gardencoin Transformers → /collections/transformers

• 🔌 Gardencoin Accessories → /collections/landscape-lighting-accessories

Still unsure which material fits your garden? Contact the Gardencoin team with photos of your space — we'll recommend a material-matched layout at no charge.

Gardencoin Landscape Lighting Guide 2026

Find the Perfect System for Your Garden Scene

Every garden tells a different story. Some are quiet sanctuaries for morning coffee. Others are dramatic stages for evening entertaining. And some simply need to get you from the driveway to the front door without tripping over the hydrangeas.

The right lighting doesn't just illuminate — it reveals the personality of your outdoor space. This guide matches Gardencoin products to real garden scenes, so you choose by "what you want to feel" rather than "what wattage you need."

---

🎭 Choose Your Garden Scene

---

Scene 1: 🚶 The Welcoming Walkway

"I want guests to feel invited the moment they step out of their car."

The Goal: Safe navigation + warm first impression

The Challenge: Path needs even light without looking like an airport runway. You need enough brightness for footing, but not so much that it feels clinical.

Gardencoin Solution

💡 Design Tip: Stagger lights left and right — never in a straight line. The "airport runway" effect (perfectly aligned lights) feels institutional. Natural spacing feels like the path was always meant to be there.

🎨 Material Choice: Use brass for the main approach (what guests see first) and aluminum for secondary paths. The weight and patina of brass communicates permanence before anyone reads a spec sheet.

---

Scene 2: 🌳 The Dramatic Tree Canopy

"I have this magnificent oak. I want it to be the sculpture of my garden at night."

The Goal: Transform a tree into a nighttime focal point

The Challenge: Distance, angle, and beam spread must be precise. Too close = hot spot on the trunk. Too far = dim, washed-out canopy. Wrong angle = glare into windows or neighbor's yard.

Gardencoin Solution

📐 Positioning Rule: Distance = 1.5× tree height for medium trees. Use 30° beam for 10-25ft trees, 15° for taller narrow specimens, 60° for broad spreading canopies.

🌙 Timing Tip: Install during the day, but adjust angles at night. What looks right in sunlight is often wrong under beam. Walk the property from multiple viewpoints — your bedroom window, the street, the patio.

---

Scene 3: 🏠 The Architectural Facade

"I want my house to look like it belongs in a magazine after sunset."

The Goal: Even wall wash, no hot spots, enhanced curb appeal

The Challenge: Different materials (brick, stone, stucco) reflect light differently. Texture creates shadows that can look dramatic or messy depending on beam angle. Window glare is a real problem if fixtures are positioned wrong.

Gardencoin Solution

🎨 Color Temperature Note: Gardencoin 2700K warm white complements natural materials (brick, stone, wood). Cooler temperatures make stucco look gray and brick look brown. Stay warm for residential.

🪟 Glare Control: Never aim spotlights directly at windows. If a fixture must face a window, use Gardencoin well lights with louvers or position so the beam grazes the wall rather than hitting it head-on.

---

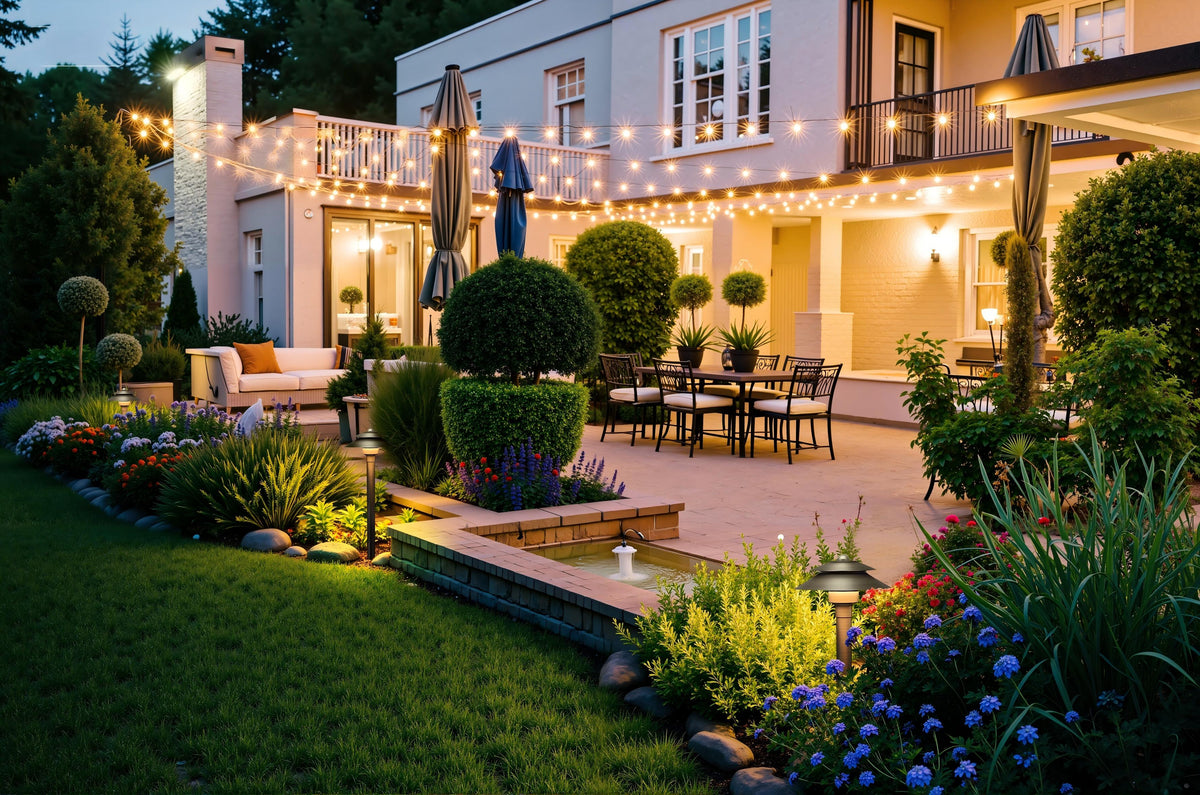

Scene 4: 🍷 The Entertaining Patio

"We dine outside three nights a week. I want ambiance, not interrogation lighting."

The Goal: Soft, indirect illumination that supports conversation without dominating it

The Challenge: Task lighting (grilling, serving) needs more brightness than ambient lighting (dining, lounging). The same space serves multiple functions. Overlighting kills ambiance; underlighting is frustrating.

Gardencoin Solution

💡 Layering Strategy: Think of patio lighting in three layers:

• Task: Hardscape lights under prep areas (brighter, focused)

• Ambient: Path lights around perimeter (soft, diffused)

• Accent: Spotlights on features (dramatic, directional)

Gardencoin's 2700K warm white ties all three layers together into a cohesive glow.

---

Scene 5: 🌿 The Garden Bed & Shrub Border

"I spent years building these beds. I want to see them after dark."

The Goal: Reveal texture, color, and form of plantings without looking like a spotlight search

The Challenge: Plants grow. What works for a 3-foot hydrangea won't work when it's 6 feet. Seasonal changes (leaf-on vs leaf-off) alter light needs. Color rendering is critical — cheap LEDs make green foliage look gray.

Gardencoin Solution

🌱 Growth Planning: Install spotlights with adjustment room. A Gardencoin Classic Spotlight aimed at a young Japanese maple will need its angle lowered every 2-3 years as the canopy develops. The locking mechanism holds position through seasons.

🎨 CRI Matters: Gardencoin's 90+ CRI LEDs make burgundy barberry look burgundy, not brown. Variegated foliage reads as variegated, not muddy. This is where premium LEDs justify their cost — you see what you planted.

---

Scene 6: 🛡️ The Security Perimeter

"I want to feel safe, but I don't want my yard to look like a prison."

The Goal: Deterrence through illumination, not intimidation through glare

The Challenge: Security lighting often sacrifices aesthetics for function. Motion-activated floods are effective but jarring. The goal is consistent, even coverage that eliminates hiding spots without creating harsh shadows.

Gardencoin Solution

💡 Security vs Aesthetics: The best security lighting doesn't look like security lighting. Gardencoin's warm white (2700K) and shrouded fixtures create inviting illumination that happens to eliminate dark spots. Consistent dusk-to-dawn operation (via transformer photocell) is more effective than motion sensors — no surprises, no shadows.

🌙 Layer with Timers: Gardencoin multi-tap transformers include astronomical timers that adjust to seasonal sunset changes. Your perimeter is lit when you need it, dimmed when you don't.

---

🔧 The Gardencoin System: How It All Connects

Every scene above uses the same core Gardencoin infrastructure. Here's how the pieces fit together:

⚡ The Transformer: Your System's Heart

⚡ Multi-Tap Explained: As wire runs get longer, voltage drops. A multi-tap transformer lets you send 14V or 15V down the line so your last fixture still receives 12V. Without this, your last tree is half as bright as your first.

---

🔌 The Connectors: The Weakest Link (If You Get It Wrong)

🚨 Gardencoin Gel-Filled Waterproof Connectors

Every Gardencoin system — from a 4-light starter to a 30-fixture estate — uses these. Silicone gel self-seals on snap, creating a vacuum barrier against moisture. Piercing teeth penetrate wire insulation without stripping. 10+ year outdoor rated.

Standard wire nuts fail in 1-2 seasons. Don't let a $0.50 connector ruin a $500 system.

---

📏 The Wire: Invisible Infrastructure

💡 Rule: Measure voltage at your last fixture with all lights on. Must read 10.8V or higher. If not, upgrade wire or switch to a higher transformer tap.

---

🛠️ Installation: From Vision to Reality

🔧 Tools You'll Need

• 🪓 Flat spade or trenching tool

• ✂️ Wire strippers

• 🪛 Screwdriver set

• 📊 Voltage multimeter (optional but recommended)

• 🚩 Gardencoin landscape flags for marking

---

📐 The 7-Step Process

1️⃣ Plan Your Scene

Walk your garden at night with a flashlight. Mimic where you want light. Mark positions with Gardencoin landscape flags. Take photos — your memory of darkness is unreliable.

💡 Pro Tip: Stand at your property's entry points (driveway, front walk, patio door). The view from these positions is what matters most. Light for the guest's experience, not just your own.

---

2️⃣ Size Your Transformer

Add total fixture wattage × 1.25 = minimum size. Round up for expansion.

Example: 6 path lights (3W) + 4 spotlights (5W) = 38W → 38W × 1.25 = 47.5W → Choose 75W or 150W for headroom.

---

3️⃣ Lay Gardencoin Wire

Unroll without cutting. Leave 12-18" slack at each fixture. Route around obstacles rather than through them.

---

4️⃣ Connect with Gardencoin Gel Connectors

Strip 1/2", pierce, snap shut. The gel seals automatically. Tug-test every connection.

---

5️⃣ Install Transformer

Mount 12" above ground near GFCI outlet. Clear photocell of obstructions. Set photocell or timer mode.

---

6️⃣ Test at Night

⚠️ This is the step most people skip. Don't.

Power on after dark. Walk every viewpoint. Check for:

• ❌ Glare into windows

• ❌ Dark spots between fixtures

• ❌ Overlap creating hot zones

• ✅ Last fixture as bright as first

Use a multimeter: last fixture must read 10.8V+.

---

7️⃣ Bury and Refine

Trench 6" deep. Bury wire. Tamp soil. Then live with it for a week. Adjust angles, add or move fixtures, fine-tune. A Gardencoin system is modular — nothing is permanent until you're happy.

---

⚠️ 5 Mistakes That Ruin Garden Scenes

---

❓ Scene-Specific FAQ

Q: I have a small urban garden. Can I use Gardencoin in a tight space?

A: Absolutely. Gardencoin Compact Spotlights and Hardscape Lights are designed for small spaces. A 4-fixture system (2 path lights + 2 spotlights) on a Gardencoin 45W transformer can transform a 20×20ft garden. The key is focusing on one or two focal points rather than trying to light everything.

---

Q: My garden is mostly mature trees. Do I need path lights at all?

A: Not necessarily. Some of the most dramatic Gardencoin installations are "spotlight-only" — 6-8 brass spotlights and well lights sculpting tree canopies with no path lighting at all. The ground becomes a dark stage; the trees become the performers. Use Gardencoin Classic Spotlights with 15° and 30° beams for this approach.

---

Q: I rent my home. Can I still use Gardencoin?

A: Yes. Choose the Gardencoin Aluminum line — lighter weight, easier removal, lower investment. The 45W single-tap transformer plugs into any GFCI outlet (no hardwiring). When you move, disconnect at the gel connectors, pull the fixtures, and take your system with you. The wire stays (it's direct burial and harmless), but the valuable parts travel with you.

---

Q: How do I light a sloped garden?

A: Slopes are actually easier than flat ground — gravity helps with drainage, and elevation changes create natural drama. Use Gardencoin Well Lights on the uphill side (they're flush and won't tilt). Use Gardencoin Classic Spotlights from the downhill side aimed upward — the angle exaggerates tree height. Space path lights closer together on steep grades (5-6ft instead of 6-8ft) because the light pool is smaller on a slope.

---

Q: Can Gardencoin handle coastal salt air?

A: The Gardencoin Brass line is specifically designed for this. Solid brass develops a protective patina that resists salt corrosion. Avoid bare aluminum in coastal climates — the Gardencoin Aluminum line uses bronze powder coating for moderate coastal areas, but brass is the safest long-term choice within 5 miles of salt water.

---

Q: I want to start small and expand. What's the best entry point?

A: Start with Scene 1 (Welcoming Walkway) using Gardencoin Brass Path Lights and a 150W Multi-Tap Transformer. The transformer gives you 100W+ of expansion headroom. The 12/2 wire handles future additions. Add spotlights for Scene 2 next year, hardscape lights for Scene 4 the year after. Gardencoin systems are designed to grow with your garden.

---

🛒 Find Your Scene

Not sure which scene matches your garden? Browse by need:

• 🚶 Path & Walkway Lighting → /collections/pathway-lights

• 🌳 Tree & Feature Uplighting → /collections/spotlights

• 🏠 Facade & Architectural Lighting → /collections/spotlights

• 🍷 Patio & Entertaining Lighting → /collections/decorative-light

• 🌿 Garden Bed & Shrub Lighting → /collections/spotlights

• 🛡️ Security Perimeter Lighting → /collections/pathway-lights

Need help designing your scene? Contact the Gardencoin lighting team for a free layout consultation.



Why Are My Low Voltage Path Lights Flickering? 7 Causes & Fixes

You spent a Saturday installing your new low voltage path lights, and they looked perfect... for about two weeks. Now they're flickering, dimming, or going completely dark.

Before you rip everything out and start over, read this guide.

Flickering in low voltage landscape lighting is almost always fixable without replacing the entire system. The key is identifying the root cause, which usually falls into one of seven categories.

---

🔍 1. Voltage Drop (Most Common)

Voltage drop is the #1 cause of dimming and flickering in low voltage systems. As electricity travels through wire, resistance causes voltage to decrease. By the time power reaches the last fixture in a long run, it may be too low to maintain stable LED operation.

📋 How to Diagnose

• 🔄 Flickering gets worse toward the end of the wire run

• 💡 First few lights are bright and stable; last few are dim or flickering

• ❄️ Problem worsens in cold weather (wire resistance increases)

📊 The Math

For 14/2 wire at 3W per fixture:

🔧 How to Fix

1. Upgrade wire gauge: Switch from 14/2 to 12/2 wire for runs over 60 feet. 12/2 has 40% less resistance.

2. Use a multi-tap transformer: Switch the run to 13V or 14V output to compensate for drop.

3. Split the run: Divide one long run into two shorter runs on separate transformer taps.

4. Hub (star) layout: Run a heavier-gauge home-run wire to a central hub, then use short 14/2 leads to each fixture.

🎯 Voltage Target

Measure voltage at the last fixture with all lights on. You need 10.8V – 12.0V for stable LED operation. Below 10.5V, flickering is guaranteed.

---

⚡ 2. Overloaded Transformer

Your transformer has a maximum wattage rating. Exceed it, and the output voltage becomes unstable — causing flickering across the entire system, not just the end of a run.

📋 How to Diagnose

• 🔄 All lights flicker simultaneously, not just the last few

• 💥 Flickering happens when the system first turns on (cold start surge)

• 🌡️ Transformer feels warm or makes a buzzing sound

📐 The Rule

Total fixture wattage × 1.25 = Minimum transformer size

Example: 12 fixtures at 4W each (48W) → You need at least a 60W transformer. We recommend 75W for headroom.

🔧 How to Fix

1. Calculate actual load: Count every fixture and its wattage

2. If you're within 10% of transformer capacity, upgrade to the next size

3. Split the load across two transformers if you have a large system

---

🔗 3. Loose or Corroded Wire Connections

Loose connections create intermittent contact resistance. Every time the connection shifts slightly, voltage drops — causing a flicker. This is especially common with cheap push-in connectors or wire nuts that weren't tightened properly.

📋 How to Diagnose

• 🎲 Flickering is random, not consistent

• 👆 Tapping or wiggling a fixture changes the flicker pattern

• 🔄 Some fixtures work while others don't, with no pattern based on distance

🔧 How to Fix

1. Inspect every connection: Start at the transformer and work outward

2. Retighten wire nuts: Twist clockwise until tight, then give an extra quarter-turn

3. Upgrade to gel-filled connectors: 3M Scotchlok or equivalent gel-filled connectors self-seal and resist corrosion. They're the industry standard for a reason.

4. Check for water ingress: If connectors are wet or greenish (copper oxidation), cut back 2 inches of wire and re-strip

💡 Pro Tip

After making connections, give each wire a firm tug test. If it pulls out, it wasn't secure enough.

---

💡 4. Incompatible or Failing LED Drivers

Each LED fixture contains a small driver circuit that converts 12V AC to the DC voltage the LED chip needs. Cheap drivers fail within 1-3 years, causing flickering even when voltage and connections are perfect.

📋 How to Diagnose

• 🎯 Only one fixture flickers while others on the same run are stable

• 🔄 Swapping the flickering fixture to a different position doesn't change behavior

• 🔌 Fixture flickers even when connected directly to the transformer with short wire

🔧 How to Fix

1. Test the fixture: Disconnect it from the run and connect directly to the transformer with a 3-foot test wire. If it still flickers, the driver is bad.

2. Replace the fixture: Quality fixtures have replaceable LED modules, but most budget fixtures require full replacement

3. Buy better fixtures next time: Look for drivers rated 50,000+ hours and fixtures with replaceable modules

---

🌧️ 5. Corroded or Failed Connectors

Standard wire nuts and push-in connectors are not designed for outdoor use. Moisture seeps in, copper oxidizes, and the connection degrades. Within 1-2 seasons, you'll have green corrosion and intermittent contact.

📋 How to Diagnose

• 🌧️ Flickering started after the first winter or rainy season

• 🟢 Connections show green/white corrosion when opened

• 💦 Fixtures near sprinkler heads or low spots fail first

🔧 How to Fix

1. Replace all outdoor connectors with gel-filled types: These cost $0.50–1.00 each but last 10+ years. The gel automatically seals the connection when you snap it shut.

2. Elevate connections: Don't bury connectors directly in soil. Place them 2-3 inches above grade or use waterproof junction boxes.

3. Check for sprinkler interference: Redirect sprinkler heads that spray directly on fixtures or connections.

---

🌅 6. Transformer Photocell or Timer Issues

Many transformers have built-in photocells (dusk-to-dawn sensors) or timers. A failing photocell can cause the transformer to rapidly cycle on/off at dawn/dusk, creating a flickering effect.

📋 How to Diagnose

• 🌅 Flickering only happens at dawn or dusk

• 🔄 Lights turn on/off repeatedly during twilight

• ☀️ Problem doesn't occur during full daylight or full darkness

🔧 How to Fix

1. Clean the photocell lens: Dirt and debris can cause false readings

2. Reposition the photocell: Make sure it's not shaded by plants, structures, or other lights

3. Switch to manual/timer mode: If the photocell is failing, bypass it and use the timer function instead

4. Replace the transformer: If photocell failure is confirmed and the transformer is under warranty, contact the manufacturer

---

💧 7. Water Ingress into Fixtures

Even "waterproof" fixtures can leak if gaskets degrade or seals are compromised during installation. Water inside the fixture causes short circuits and erratic LED behavior.

📋 How to Diagnose

• 🌧️ Flickering started after heavy rain or sprinkler system activation

• 💧 Fixture lens shows condensation or water droplets inside

• 🏞️ Fixture is positioned in a low spot where water pools

🔧 How to Fix

1. Remove and inspect: Open the fixture and check for moisture

2. Dry thoroughly: Use a hair dryer on low heat or let air-dry for 24 hours

3. Reseal gaskets: Replace cracked or compressed gaskets with silicone equivalents

4. Check IP rating: Ensure fixtures are rated IP65+ for their installation location

5. Elevate if needed: Raise fixtures in chronically wet areas by 1-2 inches

---

📊 Troubleshooting Quick Reference

---

✅ When to Repair vs Replace

🔧 Repair If

• ✅ System is under 5 years old

• ✅ Problem is isolated to 1-2 fixtures or connections

• ✅ Transformer is properly sized and functional

• ✅ You have spare wire and connectors on hand

🔄 Replace If

• ❌ System is over 10 years old with multiple failure points

• ❌ Transformer is undersized for current load

• ❌ More than 30% of fixtures are failing

• ❌ Original installation used substandard materials (indoor wire nuts, thin wire, etc.)

💡 Upgrade Opportunity

If you're replacing, consider upgrading to brass fixtures and a multi-tap transformer. The incremental cost pays for itself in longevity and eliminates voltage drop issues permanently.

---

❓ FAQ

Are flickering low voltage lights dangerous?

Generally no — 12V systems pose minimal shock risk. However, loose connections can generate heat. If you smell burning or see discoloration near connections, turn off the system and inspect immediately.

Can I use a dimmer with low voltage landscape lights?

Only if both the transformer and LED drivers are explicitly rated for dimming. Most low voltage landscape transformers are on/off only. Adding a dimmer to a non-dimmable system will cause flickering and premature driver failure.

Why do my lights flicker only when the AC turns on?

Your air conditioner draws a high startup current (5-7× running current), causing a brief voltage dip on the entire circuit. If your transformer shares a circuit with the AC, the output voltage drops momentarily. Move the transformer to a dedicated circuit or use a UPS-style voltage stabilizer.

How often should I check my landscape lighting connections?

Inspect annually before the first freeze. Check for corrosion, loose connections, and damaged wire insulation. 10 minutes of prevention saves hours of troubleshooting.

Can I mix LED and halogen fixtures on the same transformer?

Technically yes, but not recommended. LEDs and halogens have different voltage requirements and load characteristics. The transformer must be sized for halogen wattage (much higher), and dimming becomes impossible. Stick to all-LED for best results.

---

🚀 Still Flickering After Trying These Fixes?

Browse our replacement fixtures and connectors or contact our support team for personalized troubleshooting.

How to Install Low Voltage Path Lights: A Complete DIY Guide

Installing low voltage path lights is one of the few electrical projects that's genuinely DIY-friendly. At 12 volts, the system is safe to handle (you won't get shocked), and the wiring is simple enough to complete in a single weekend.

This guide covers everything from planning your layout to burying the final wire. Follow these steps, and you'll have professional-looking path lighting that adds safety, security, and curb appeal to your home.

---

🛠️ What You'll Need

📦 Essential Materials

• 🔦 Low voltage path lights (6-12 fixtures, depending on path length)

• ⚡ Transformer (12V AC, multi-tap preferred: 12V/13V/14V/15V)

• 🧵 Direct burial wire (14/2 for runs under 60ft, 12/2 for longer runs)

• 🔗 Gel-filled waterproof connectors (3M Scotchlok or equivalent)

• 📌 Wire staples or landscape stakes (to secure wire)

🔧 Essential Tools

• 🪓 Flat spade or trenching shovel

• ✂️ Wire strippers

• 🪛 Screwdriver set (Phillips and flathead)

• 📊 Voltage multimeter (optional but highly recommended)

• 📏 Tape measure

• 🚩 Landscape flags or spray paint

• 🧤 Work gloves

💡 Optional But Recommended

• 🎣 Fish tape (for pulling wire under walkways)

• 🧪 Conduit (for wire protection under driveways or heavy traffic areas)

• 🌿 Mulch or sod (to cover trenches after installation)

---

📐 Step 1: Plan Your Layout

Measure Your Path

Walk your intended lighting path with a tape measure. Record:

• 📏 Total linear feet of pathway

• 📐 Width of pathway (affects light spread needed)

• 🌳 Obstacles (trees, beds, utilities, sprinkler lines)

• 🔌 GFCI outlet location (for transformer placement)

Spacing Guidelines

💡 Pro Tip: Stagger lights left and right of the path centerline. This creates a natural, organic look and avoids the "airport runway" effect of perfectly aligned lights.

Transformer Placement

Place the transformer within 6 feet of a GFCI-protected outdoor outlet. Mount it at least 12 inches above ground level to prevent water intrusion. Consider:

• 📍 Proximity to the path (shorter wire runs = less voltage drop)

• 👀 Visibility (hide behind shrubs or structures if possible)

• 🔄 Future expansion (leave room for additional transformers)

Draw a Diagram

Sketch your layout with measurements. Mark:

• 🏠 Transformer location

• 🔢 Each fixture position (numbered)

• 🧵 Wire run path

• 📏 Approximate distances between fixtures

• 📐 Total wire length needed

⚠️ Add 20% to your total wire length for slack and adjustments.

---

⚡ Step 2: Size Your Transformer

The Calculation

1. Count fixtures: 8 path lights

2. Check wattage per fixture: 3W LED

3. Total load: 8 × 3W = 24W

4. Add 25% headroom: 24W × 1.25 = 30W minimum

5. Select transformer: Round up to next standard size = 45W or 75W

Why headroom matters: LED drivers draw slightly more current at startup (inrush current). The 25% buffer prevents overload and allows for future expansion.

Multi-Tap vs Single-Tap

💡 Recommendation: Spend the extra $20-30 for a multi-tap transformer. You'll thank yourself when you want to add lights or extend the run later.

---

🧵 Step 3: Lay Out the Wire

Unroll and Position

1. Start at the transformer and unroll wire along your planned path

2. ⚠️ Do NOT cut the wire yet — lay the full run first

3. Leave 12-18 inches of slack at each fixture location

4. Route around trees, rocks, and garden beds rather than forcing through

Wire Gauge Selection

📌 Rule of thumb: If voltage at the last fixture drops below 10.8V, upgrade wire gauge or use a higher transformer tap.

❌ Avoid These Layout Mistakes

• Daisy-chain overload: Don't connect more than 10 fixtures in a single straight line

• Sharp bends: Wire can kink and break internally. Keep all curves gentle

• Under walkways without protection: Use conduit or fish tape to pull wire under pavers

---

🔗 Step 4: Connect the Fixtures

Strip the Wire

At each fixture location:

1. Strip 1/2 inch of insulation from the main wire

2. Strip 1/2 inch from the fixture lead wires

3. Identify polarity (usually smooth = positive, ribbed = negative, or red = positive, black = negative)

Use Gel-Filled Connectors

⚠️ Standard wire nuts corrode outdoors within 1-2 seasons. Gel-filled connectors are mandatory for long-term reliability.

How to use gel-filled connectors:

1. Align the main wire and fixture lead

2. Insert both into the connector body

3. Squeeze firmly until the piercing teeth penetrate both wires

4. Snap the cap shut — the gel automatically seals the connection

5. Give a gentle tug to confirm secure contact

Maintain Polarity

Connect positive to positive, negative to negative. While 12V AC doesn't have the same polarity sensitivity as DC, consistent wiring makes troubleshooting easier and ensures dimming compatibility if you add it later.

---

🔌 Step 5: Install the Transformer

Mounting

1. Choose a location within 6 feet of a GFCI outlet

2. Mount at least 12 inches above ground using included brackets

3. Ensure the photocell (if equipped) has clear exposure to daylight

4. Keep away from sprinkler heads and direct water exposure

Wiring Connections

1. Turn off the transformer power switch

2. Strip 3/4 inch from the main wire ends

3. Insert into the transformer's terminal block

4. Tighten screws firmly — no bare copper should be exposed

5. Double-check polarity matches the terminal labels

Timer/Photocell Setup

• 🌅 Photocell mode: Lights turn on automatically at dusk, off at dawn. Best for consistent daily operation.

• ⏰ Timer mode: Set specific on/off times. Best for energy savings or neighborhoods with light ordinances.

• 🖐️ Manual override: Most transformers have a manual on switch for testing and special occasions.

---

✅ Step 6: Test Before Burying

Power On

1. Plug in the transformer

2. Turn the power switch to ON

3. Walk the entire path and verify every fixture illuminates

Voltage Testing (Recommended)

Use a multimeter to check voltage at strategic points:

• First fixture: Should read 11.5-12.5V ✅

• Middle fixture: Should read 11.0-12.0V ✅

• Last fixture: Should read 10.8-12.0V ✅

🚨 If the last fixture reads below 10.8V:

1. Switch to a higher transformer tap (13V or 14V)

2. Or upgrade to 12/2 wire if currently using 14/2

3. Or split the run into two shorter runs

Troubleshooting Quick Guide

---

🌱 Step 7: Bury the Wire

Trenching

1. Use a flat spade to slice a narrow trench 6 inches deep

2. Lay the wire in the bottom of the trench

3. Fold the soil back over the wire

4. Tamp down firmly with your foot

💡 Pro Tip: For established lawns, use a flat spade to cut a V-shaped slit. Push the wire into the slit, then step on the sod to close it. The grass will re-root within 2-3 weeks with minimal visible damage.

Under Walkways

For wire that must cross under pavers or concrete:

1. Use a fish tape to pull wire through a conduit

2. Or carefully lift edge pavers, trench underneath, and replace

3. ⚠️ Never bury wire directly under high-traffic areas without protection

Mark Your Runs

Create a simple diagram showing:

• 🧵 Wire path from transformer to last fixture

• 📏 Approximate depths

• 🧪 Any conduit locations

• 🔦 Fixture positions

📌 Store this with your home records. Future landscaping, fence installation, or utility work will require knowing where your wire runs.

---

💰 Cost & Time Breakdown

👷 Professional installation cost: $900-2,100 for the same scope. 💰 **DIY savings**: $600-1,500.

---

⚠️ Common Mistakes to Avoid

❌ Mistake #1: Not testing before burying

Once wire is buried, troubleshooting is 10x harder. Always test the complete system above ground first.

❌ Mistake #2: Using indoor wire nuts

They'll corrode within a season. Gel-filled connectors are $0.50 each and last 10+ years. This is the cheapest insurance in your entire system.

❌ Mistake #3: Ignoring voltage drop

That dim light at the end of the run isn't "just how it is" — it's a solvable engineering problem. Use a multimeter and adjust accordingly.

❌ Mistake #4: Burying too shallow

Wire at 2-3 inches deep will be cut by aerators, edgers, and landscaping stakes. 6 inches is the minimum safe depth.

❌ Mistake #5: Forgetting expansion

Buy a transformer 50% larger than your current need. Adding 2-3 lights later is common, and replacing a transformer is expensive.

---

📅 Maintenance Schedule

---

❓ FAQ

Do I need an electrician for low voltage lighting?

No — 12V systems are safe for DIY installation. However, if your transformer requires hardwiring to a 120V circuit (instead of plugging into an outlet), hire a licensed electrician for that connection.

How deep should low voltage wire be buried?

6 inches minimum for direct burial cable. Use conduit under walkways and driveways.

Can I install path lights in existing mulch or gravel?

Yes. Simply push the stake through the mulch into the soil beneath. The wire can run on the soil surface under the mulch layer — no trenching needed in these areas.

What if I hit a sprinkler line while trenching?

Stop immediately. Sprinkler lines are typically 8-10 inches deep, so you shouldn't hit them at 6 inches, but shallow lines exist. If you do hit one, repair with a slip coupling and waterproof tape, or call your irrigation company.

Can I add lights to my system later?

Yes, if your transformer has spare capacity. Leave 25% headroom when sizing. Use the same wire gauge and gel-filled connectors for new additions.

How do I remove lights for winter in cold climates?

Most quality fixtures are rated for -20°F to 120°F and don't need removal. If you prefer to store them, disconnect at the gel-filled connector, pull the fixture, and cap the wire end with a waterproof connector.

Will landscape lighting increase my electric bill?

Minimal. A typical 8-fixture LED system at 3W each draws 24W total. Running 6 hours/night, that's 0.144 kWh/day — about $5-8 per year at average US electricity rates.

---

🚀 Ready to Start Your Project?

Browse our complete collection of low voltage path lights and installation accessories. Need help with your layout? Contact our lighting design team for a free consultation.
