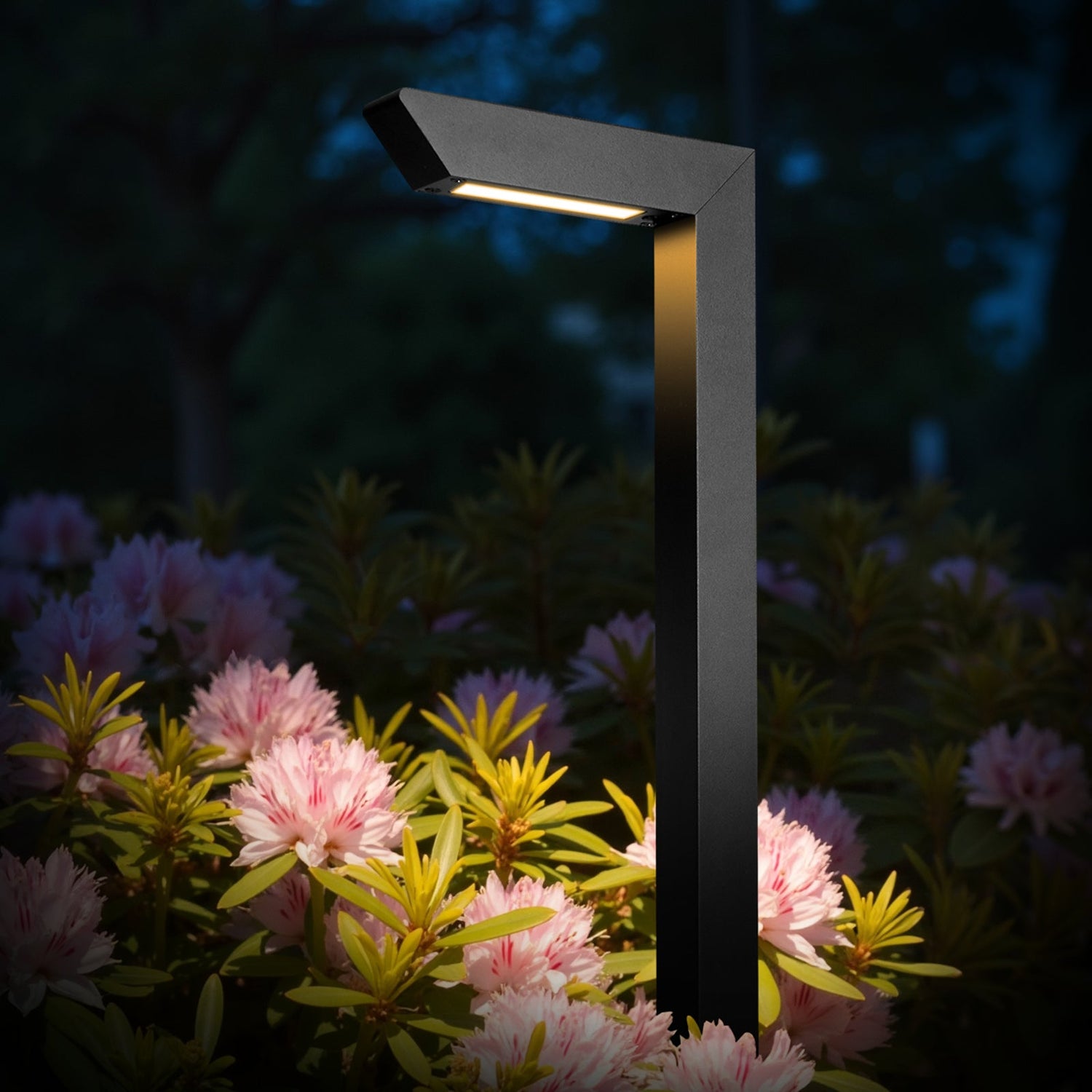

How to Install Low Voltage Path Lights: A Complete DIY Guide

Installing low voltage path lights is one of the few electrical projects that's genuinely DIY-friendly. At 12 volts, the system is safe to handle (you won't get shocked), and the wiring is simple enough to complete in a single weekend.

This guide covers everything from planning your layout to burying the final wire. Follow these steps, and you'll have professional-looking path lighting that adds safety, security, and curb appeal to your home.

---

🛠️ What You'll Need

📦 Essential Materials

• 🔦 Low voltage path lights (6-12 fixtures, depending on path length)

• ⚡ Transformer (12V AC, multi-tap preferred: 12V/13V/14V/15V)

• 🧵 Direct burial wire (14/2 for runs under 60ft, 12/2 for longer runs)

• 🔗 Gel-filled waterproof connectors (3M Scotchlok or equivalent)

• 📌 Wire staples or landscape stakes (to secure wire)

🔧 Essential Tools

• 🪓 Flat spade or trenching shovel

• ✂️ Wire strippers

• 🪛 Screwdriver set (Phillips and flathead)

• 📊 Voltage multimeter (optional but highly recommended)

• 📏 Tape measure

• 🚩 Landscape flags or spray paint

• 🧤 Work gloves

💡 Optional But Recommended

• 🎣 Fish tape (for pulling wire under walkways)

• 🧪 Conduit (for wire protection under driveways or heavy traffic areas)

• 🌿 Mulch or sod (to cover trenches after installation)

---

📐 Step 1: Plan Your Layout

Measure Your Path

Walk your intended lighting path with a tape measure. Record:

• 📏 Total linear feet of pathway

• 📐 Width of pathway (affects light spread needed)

• 🌳 Obstacles (trees, beds, utilities, sprinkler lines)

• 🔌 GFCI outlet location (for transformer placement)

Spacing Guidelines

💡 Pro Tip: Stagger lights left and right of the path centerline. This creates a natural, organic look and avoids the "airport runway" effect of perfectly aligned lights.

Transformer Placement

Place the transformer within 6 feet of a GFCI-protected outdoor outlet. Mount it at least 12 inches above ground level to prevent water intrusion. Consider:

• 📍 Proximity to the path (shorter wire runs = less voltage drop)

• 👀 Visibility (hide behind shrubs or structures if possible)

• 🔄 Future expansion (leave room for additional transformers)

Draw a Diagram

Sketch your layout with measurements. Mark:

• 🏠 Transformer location

• 🔢 Each fixture position (numbered)

• 🧵 Wire run path

• 📏 Approximate distances between fixtures

• 📐 Total wire length needed

⚠️ Add 20% to your total wire length for slack and adjustments.

---

⚡ Step 2: Size Your Transformer

The Calculation

1. Count fixtures: 8 path lights

2. Check wattage per fixture: 3W LED

3. Total load: 8 × 3W = 24W

4. Add 25% headroom: 24W × 1.25 = 30W minimum

5. Select transformer: Round up to next standard size = 45W or 75W

Why headroom matters: LED drivers draw slightly more current at startup (inrush current). The 25% buffer prevents overload and allows for future expansion.

Multi-Tap vs Single-Tap

💡 Recommendation: Spend the extra $20-30 for a multi-tap transformer. You'll thank yourself when you want to add lights or extend the run later.

---

🧵 Step 3: Lay Out the Wire

Unroll and Position

1. Start at the transformer and unroll wire along your planned path

2. ⚠️ Do NOT cut the wire yet — lay the full run first

3. Leave 12-18 inches of slack at each fixture location

4. Route around trees, rocks, and garden beds rather than forcing through

Wire Gauge Selection

📌 Rule of thumb: If voltage at the last fixture drops below 10.8V, upgrade wire gauge or use a higher transformer tap.

❌ Avoid These Layout Mistakes

• Daisy-chain overload: Don't connect more than 10 fixtures in a single straight line

• Sharp bends: Wire can kink and break internally. Keep all curves gentle

• Under walkways without protection: Use conduit or fish tape to pull wire under pavers

---

🔗 Step 4: Connect the Fixtures

Strip the Wire

At each fixture location:

1. Strip 1/2 inch of insulation from the main wire

2. Strip 1/2 inch from the fixture lead wires

3. Identify polarity (usually smooth = positive, ribbed = negative, or red = positive, black = negative)

Use Gel-Filled Connectors

⚠️ Standard wire nuts corrode outdoors within 1-2 seasons. Gel-filled connectors are mandatory for long-term reliability.

How to use gel-filled connectors:

1. Align the main wire and fixture lead

2. Insert both into the connector body

3. Squeeze firmly until the piercing teeth penetrate both wires

4. Snap the cap shut — the gel automatically seals the connection

5. Give a gentle tug to confirm secure contact

Maintain Polarity

Connect positive to positive, negative to negative. While 12V AC doesn't have the same polarity sensitivity as DC, consistent wiring makes troubleshooting easier and ensures dimming compatibility if you add it later.

---

🔌 Step 5: Install the Transformer

Mounting

1. Choose a location within 6 feet of a GFCI outlet

2. Mount at least 12 inches above ground using included brackets

3. Ensure the photocell (if equipped) has clear exposure to daylight

4. Keep away from sprinkler heads and direct water exposure

Wiring Connections

1. Turn off the transformer power switch

2. Strip 3/4 inch from the main wire ends

3. Insert into the transformer's terminal block

4. Tighten screws firmly — no bare copper should be exposed

5. Double-check polarity matches the terminal labels

Timer/Photocell Setup

• 🌅 Photocell mode: Lights turn on automatically at dusk, off at dawn. Best for consistent daily operation.

• ⏰ Timer mode: Set specific on/off times. Best for energy savings or neighborhoods with light ordinances.

• 🖐️ Manual override: Most transformers have a manual on switch for testing and special occasions.

---

✅ Step 6: Test Before Burying

Power On

1. Plug in the transformer

2. Turn the power switch to ON

3. Walk the entire path and verify every fixture illuminates

Voltage Testing (Recommended)

Use a multimeter to check voltage at strategic points:

• First fixture: Should read 11.5-12.5V ✅

• Middle fixture: Should read 11.0-12.0V ✅

• Last fixture: Should read 10.8-12.0V ✅

🚨 If the last fixture reads below 10.8V:

1. Switch to a higher transformer tap (13V or 14V)

2. Or upgrade to 12/2 wire if currently using 14/2

3. Or split the run into two shorter runs

Troubleshooting Quick Guide

---

🌱 Step 7: Bury the Wire

Trenching

1. Use a flat spade to slice a narrow trench 6 inches deep

2. Lay the wire in the bottom of the trench

3. Fold the soil back over the wire

4. Tamp down firmly with your foot

💡 Pro Tip: For established lawns, use a flat spade to cut a V-shaped slit. Push the wire into the slit, then step on the sod to close it. The grass will re-root within 2-3 weeks with minimal visible damage.

Under Walkways

For wire that must cross under pavers or concrete:

1. Use a fish tape to pull wire through a conduit

2. Or carefully lift edge pavers, trench underneath, and replace

3. ⚠️ Never bury wire directly under high-traffic areas without protection

Mark Your Runs

Create a simple diagram showing:

• 🧵 Wire path from transformer to last fixture

• 📏 Approximate depths

• 🧪 Any conduit locations

• 🔦 Fixture positions

📌 Store this with your home records. Future landscaping, fence installation, or utility work will require knowing where your wire runs.

---

💰 Cost & Time Breakdown

👷 Professional installation cost: $900-2,100 for the same scope. 💰 **DIY savings**: $600-1,500.

---

⚠️ Common Mistakes to Avoid

❌ Mistake #1: Not testing before burying

Once wire is buried, troubleshooting is 10x harder. Always test the complete system above ground first.

❌ Mistake #2: Using indoor wire nuts

They'll corrode within a season. Gel-filled connectors are $0.50 each and last 10+ years. This is the cheapest insurance in your entire system.

❌ Mistake #3: Ignoring voltage drop

That dim light at the end of the run isn't "just how it is" — it's a solvable engineering problem. Use a multimeter and adjust accordingly.

❌ Mistake #4: Burying too shallow

Wire at 2-3 inches deep will be cut by aerators, edgers, and landscaping stakes. 6 inches is the minimum safe depth.

❌ Mistake #5: Forgetting expansion

Buy a transformer 50% larger than your current need. Adding 2-3 lights later is common, and replacing a transformer is expensive.

---

📅 Maintenance Schedule

---

❓ FAQ

Do I need an electrician for low voltage lighting?

No — 12V systems are safe for DIY installation. However, if your transformer requires hardwiring to a 120V circuit (instead of plugging into an outlet), hire a licensed electrician for that connection.

How deep should low voltage wire be buried?

6 inches minimum for direct burial cable. Use conduit under walkways and driveways.

Can I install path lights in existing mulch or gravel?

Yes. Simply push the stake through the mulch into the soil beneath. The wire can run on the soil surface under the mulch layer — no trenching needed in these areas.

What if I hit a sprinkler line while trenching?

Stop immediately. Sprinkler lines are typically 8-10 inches deep, so you shouldn't hit them at 6 inches, but shallow lines exist. If you do hit one, repair with a slip coupling and waterproof tape, or call your irrigation company.

Can I add lights to my system later?

Yes, if your transformer has spare capacity. Leave 25% headroom when sizing. Use the same wire gauge and gel-filled connectors for new additions.

How do I remove lights for winter in cold climates?

Most quality fixtures are rated for -20°F to 120°F and don't need removal. If you prefer to store them, disconnect at the gel-filled connector, pull the fixture, and cap the wire end with a waterproof connector.

Will landscape lighting increase my electric bill?

Minimal. A typical 8-fixture LED system at 3W each draws 24W total. Running 6 hours/night, that's 0.144 kWh/day — about $5-8 per year at average US electricity rates.

---
